PRODUCT

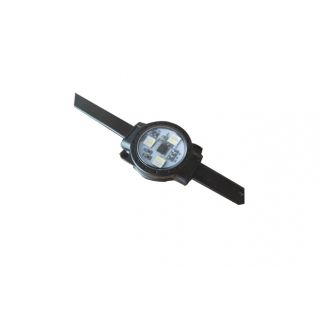

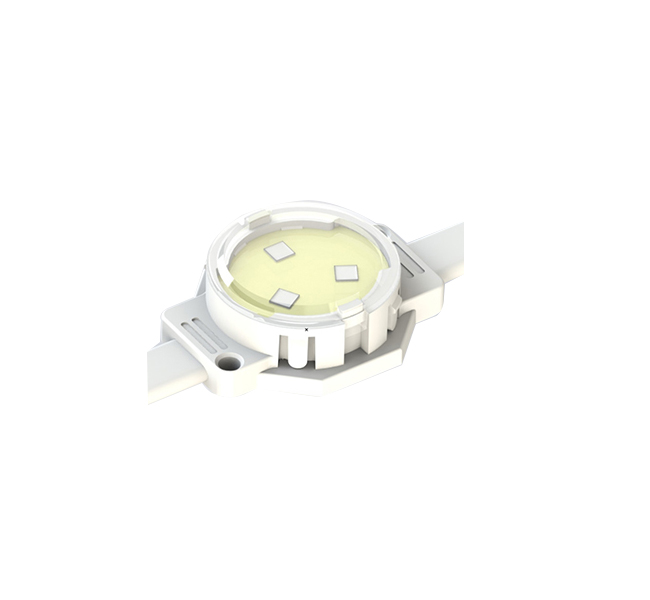

P30 outdoor led pixel light

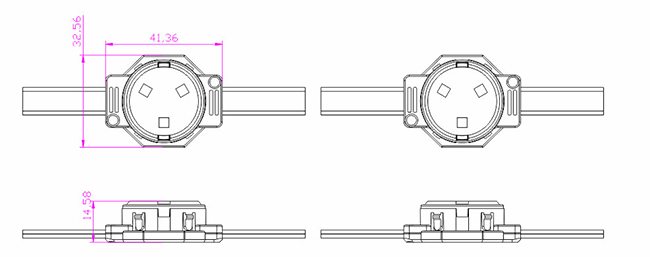

Size : L41mm* W32.5mm *H14.5mm
Material : Plastic + PVC wire
LED source : 3 pcs SMD3535 LEDs
Voltage : DC12v
Power : 0.72w
Color : RGB
Body color : cream color
UV glass : 4
IP rate : ip67
safty range : class 3
TCP : dmx-512
working Termperature -30C°-50C °
lifetime : 50000 hours
Product Feature :
1.Adopt DMX512 parallel bus technology
2. Adopt imported high protective waterproof LED lamp beads
3.Integrated clasp type joint - less anti-drag connection design
4.Imported high thermal conductivity adhesive full sealing waterproof design
5.Outdoor lighting protection and electrostatic (ESD) protection design
6.The wire adopts UV resistant, high temperature resistant and cold resistant sheath wire.The installation can be pulled at will, completely avoid the problem of water into the pull thread of conventional products
7.The product can be used steel wire buckle.Aluminum profile perforation. Glass glue direct fixation and other installation methods.

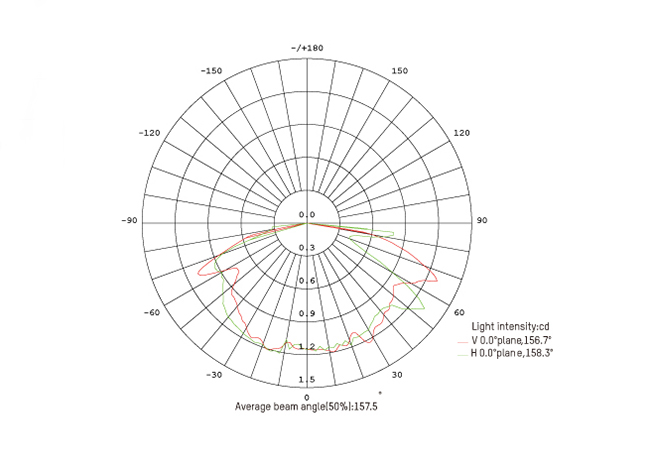

Luminous partern :

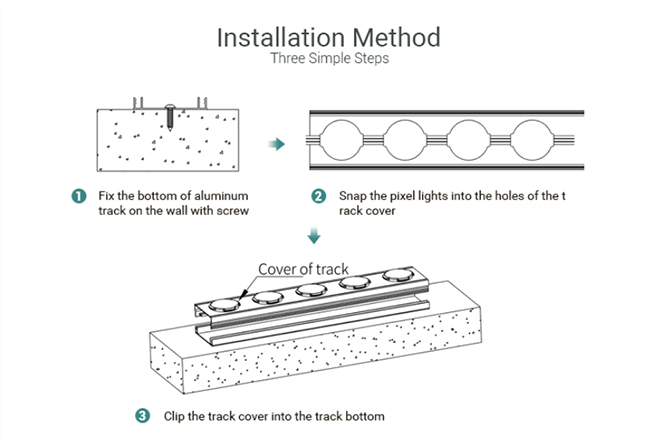

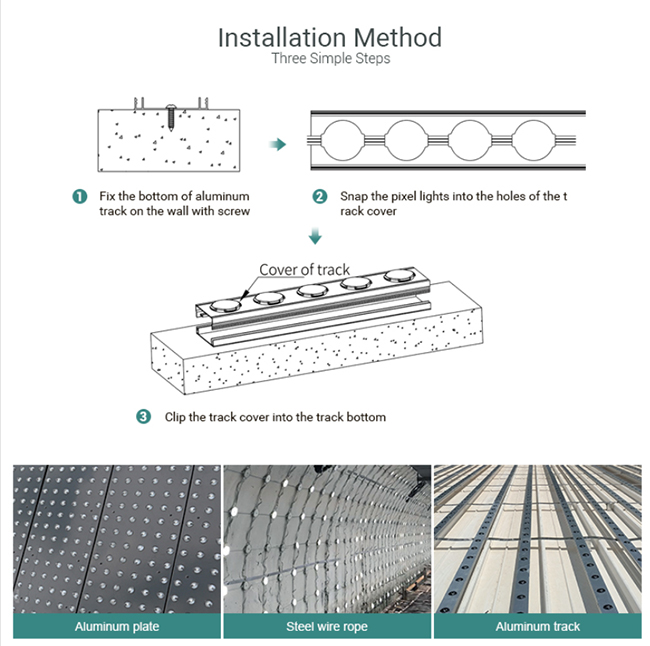

Installation :
