P35 RGBW  LED pixel light
P35 RGBW  LED pixel light  P35 RGBW  LED pixel light  P35 RGBW  LED pixel light  P35 RGBW  LED pixel light  P35 RGBW  LED pixel light

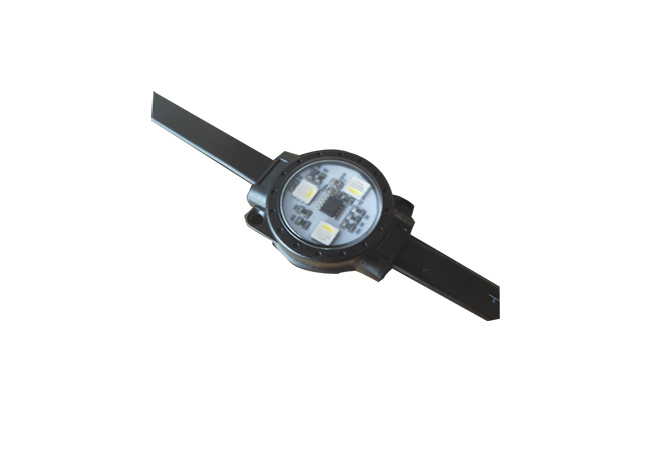

P35 RGBW LED pixel light

Product ID : BOD-P35
Product Tags :
Product Attributes :

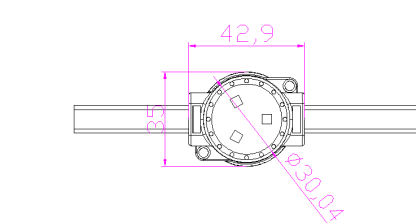

Size :                                     L43mm* D35mm *H16mm

Hole size :                              D25mm

Material :                              Flame retardant PC

LED source :                          Cree/Epistar / Osram

Voltage :                                DC12v/DC24v

Power :                                   1.2w

Color :                                     RGB/RGBW

Body color :                            Black/ cream color

UV glass :                                4

IP rate :                                    ip67

safty range :                            class 3

TCP :                                        dmx-512

working Termperature            -30C°-50C °

lifetime :                                   50000 hours



Product Description

Product Feature :

1.Adopt  DMX512 parallel bus technology


2.Adopt imported high protective waterproof LED lamp beads


3.Integrated clasp type joint - less anti-drag connection design


4.Imported high thermal conductivity adhesive full sealing waterproof design


5.Outdoor lightning protection and electrostatic (ESD) protection design


6.The wire adopts UV resistant, high temperature resistant and cold resistant sheath wire.The installation can be pulled at will,



7.completely avoid the problem of water into the pull thread of conventional products

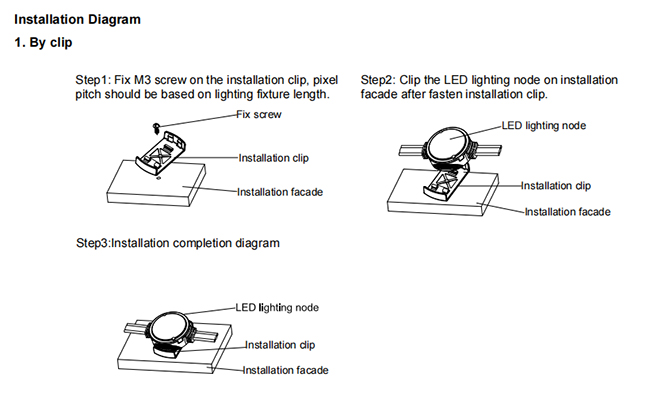

8.The product can be used steel wire buckle.Aluminum profile perforation. Glass glue direct fixation and other installation methods.

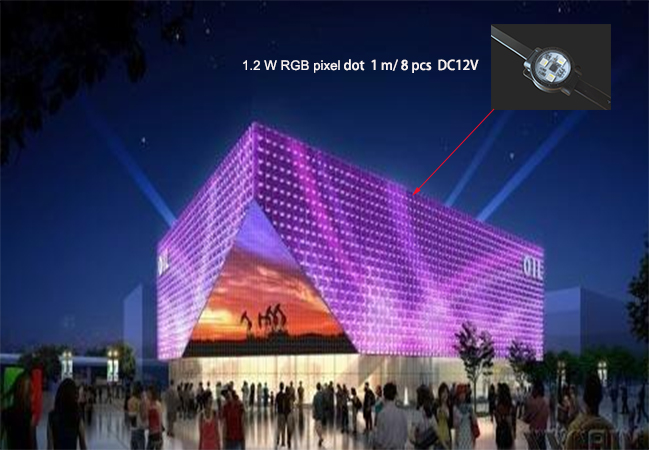

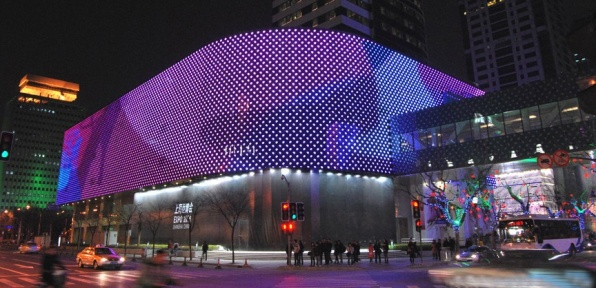

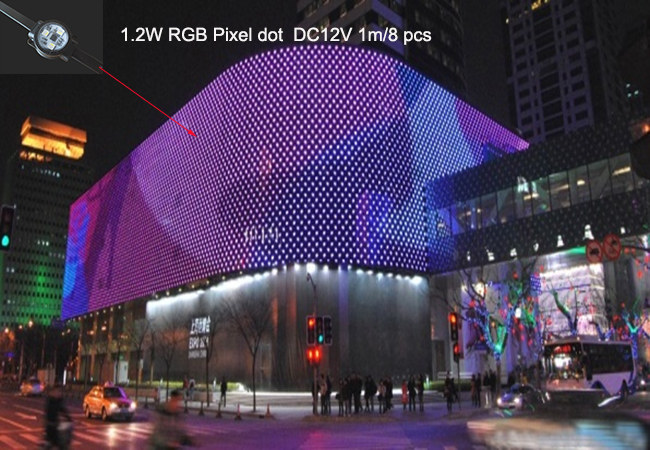

Project application :
