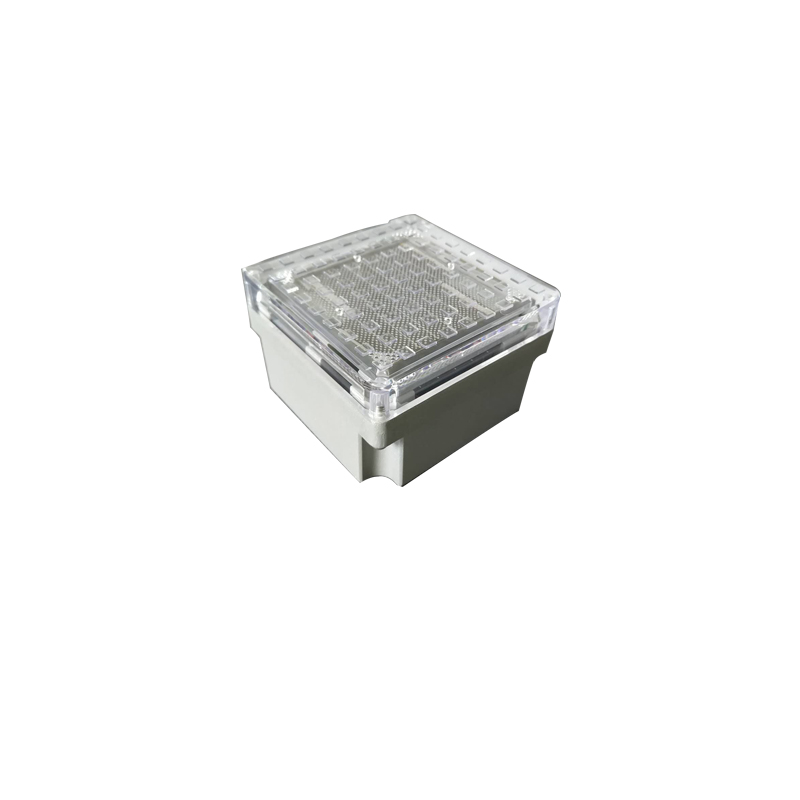

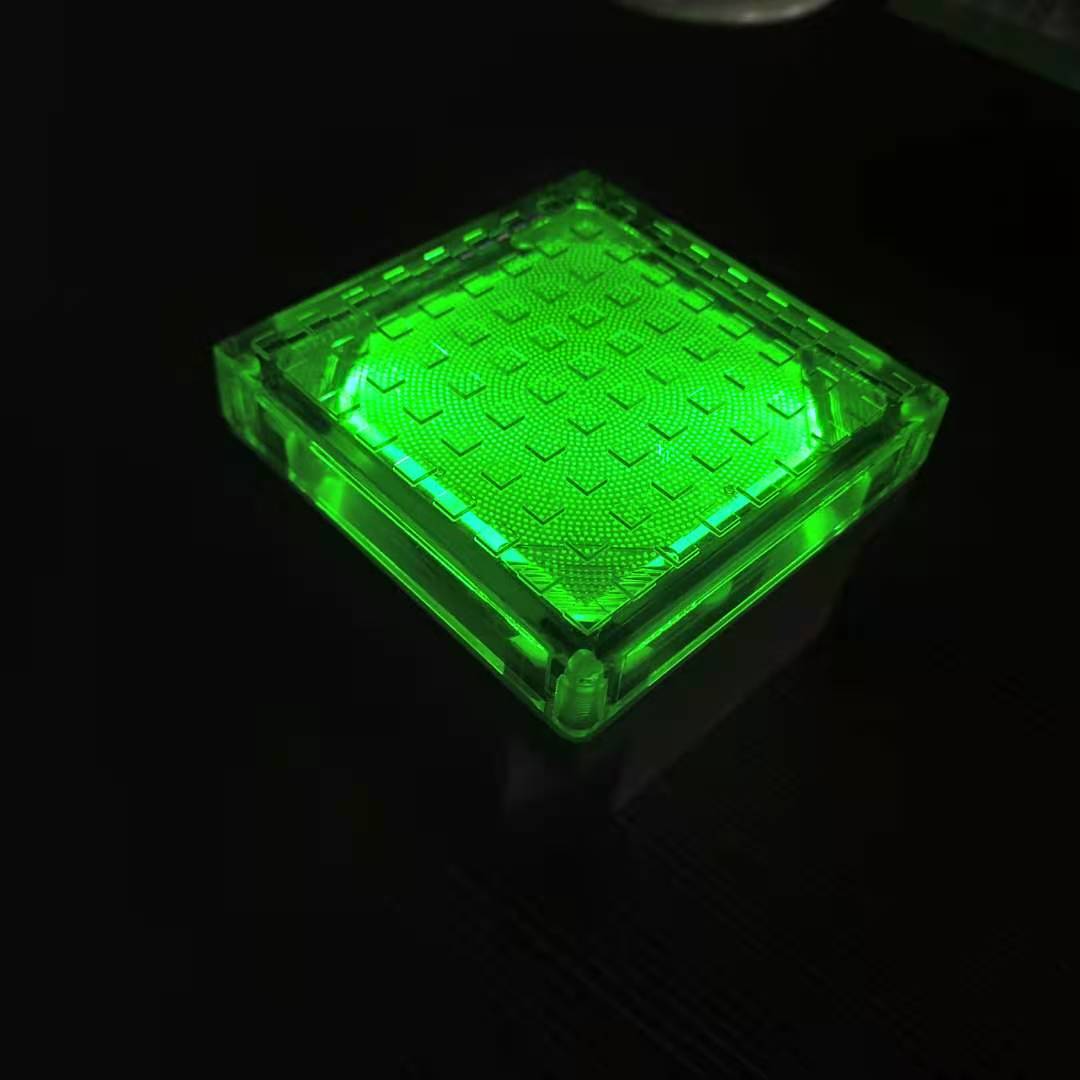

Solar floor tile lamp for garden decoration

Product instruction :

Solar floor tile lamp, which can be directly laid like ordinary floor tile when applied. widely be used for outdoor decoration and safety guidance, such as garden, square, scenic spot, residential area lighting, walking path, greenway and etc .
The product uses the monocrystalline silicon solar cell as the power source and converts the solar energy into electric energy. The animal electric device is a lithium iron phosphate battery with a service life of 5-7 years.

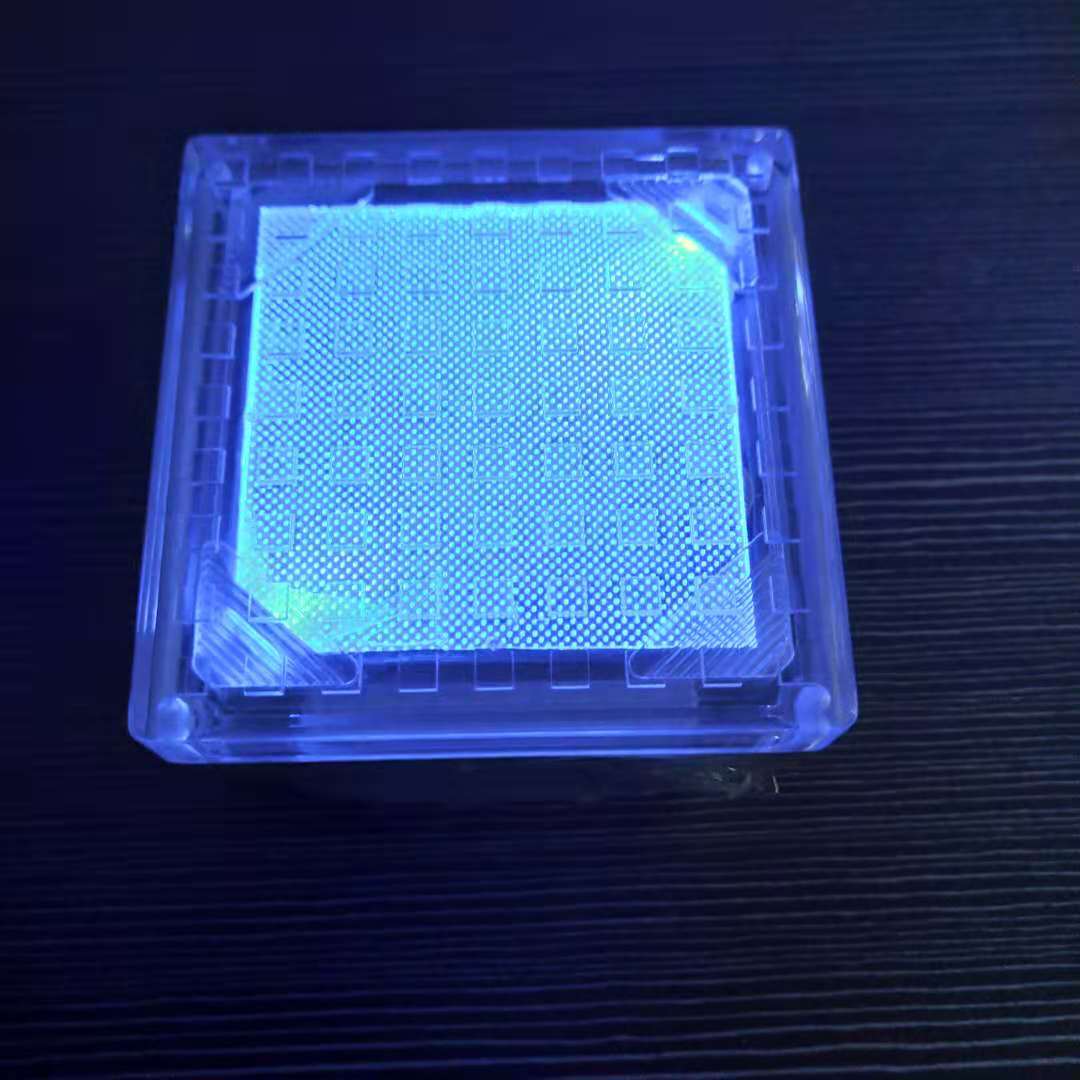

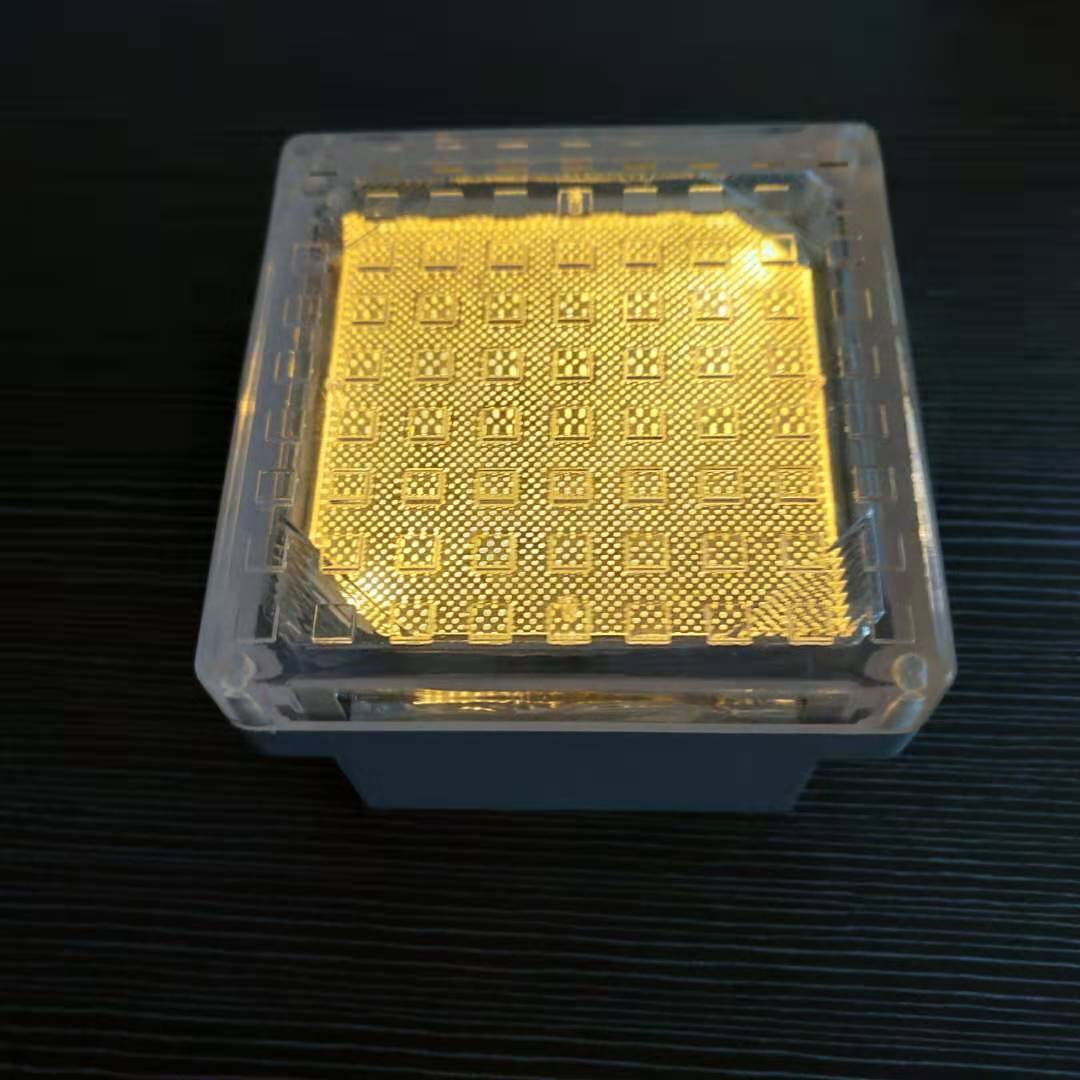

High brightness LED and smart application of backlight technology to make the whole lamp's luminous uniform .
The whole Lights is environmentally friendly without external power supply. the light automatically turned off while the battery is charged by sunlight in the daytime.
Automatically turn on the light at night that is intelligent light control.
The lamp face cover is made of transparent PC mold.
Add anti-skid function on the surface, The base is made of die-casting aluminum mold.
Make the overall ability to resist pressure greatly enhanced

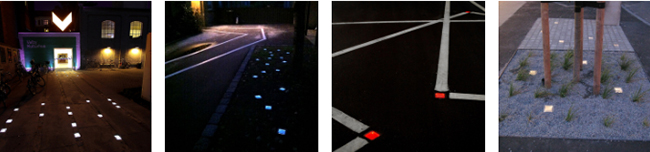

Project application :

Installation :

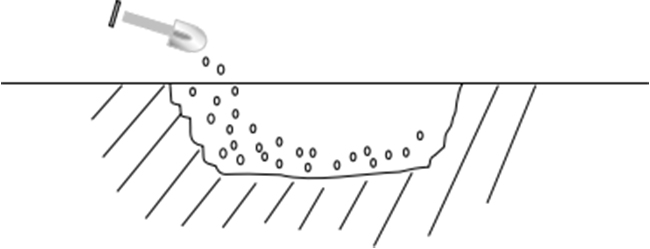

Step  1 :   A  :  Floor tile pavement installation, remove the floor tile Then put the lamp's body into the hole directly .

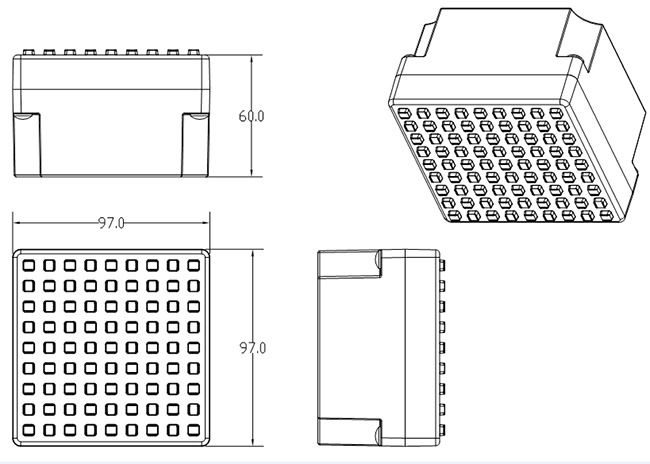

                B:  The square hole on the ground is 100MM  Depth is   63mm .  Add  some glue in the hole properly

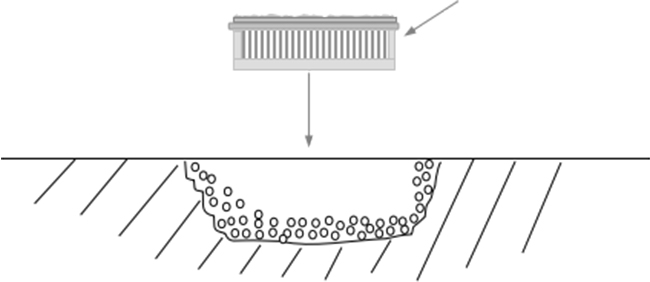

 2 :  Place the main body of the lamp into the hole and tap it with a hammer to make it smoothly  with the ground

     (picture 2).

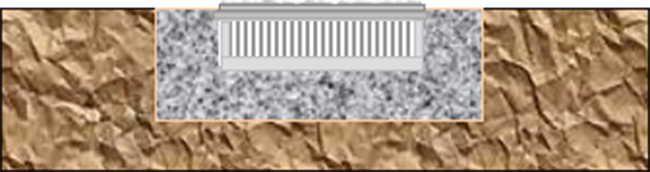

3 : Clean up the  glue on the lamps body and installation place,then finished installation

     (picture 3).
